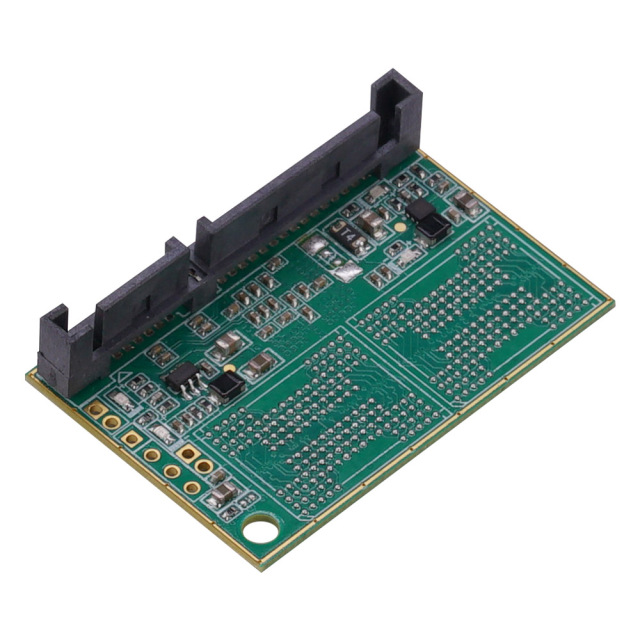

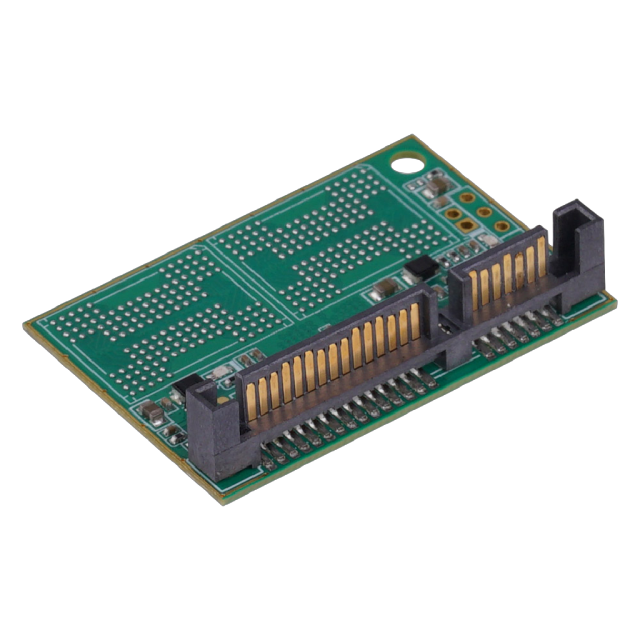

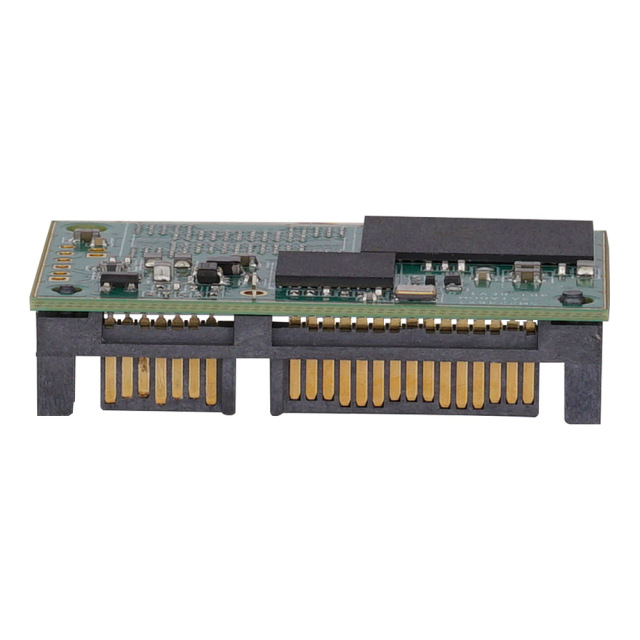

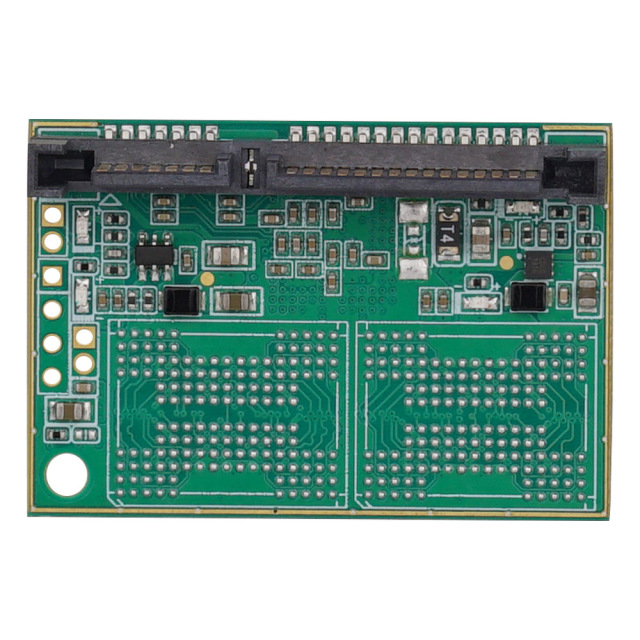

RSSDH-XXX is suitable in industrial applications and light operating systems for specific operations. The architectural nature of SATA disk module provides higher resistance to external environmental influences and better flexibility for motherboard space.
Features
Interface：SATA 7pin
Low-Density Parity-Check (LDPC) Code
Global Wear Leveling
Flash bad-block management
Flash Translation Layer: Page Mapping
Support S.M.A.R.T.
Support TRIM
Specifications
|
Product Model |
RSSDH-XXX |
|
Flash Type |
SLC/MLC |
|
Capacity |
8GB-256GB |
|
Sequential Read |
Up to 300MB/s |
|
Sequential Write |
Up to 200MB/s |
|
4K Random Read |
15000 IOPS |
|
4K Random Write |
13300 IOPS |
|
Operating Temperature |
-20°C ~ 70°C, -40°C ~ 85°C |
|
Storage Temperature |
-55°C ~ +95°C |
|
Humidity |
5%-95% RH non-condensing |
|
Shock |
1500G/0.5ms |
|
Vibration |
80Hz~2000Hz/20G |
|
Operating Voltage |
DC 5V±5% |
|
Power Consumption |
1.5W |
|
Dimensions |
L39.5mm*W25mm*H9.3mm ±0.15mm |
|
MTBF |
2 million hours |
