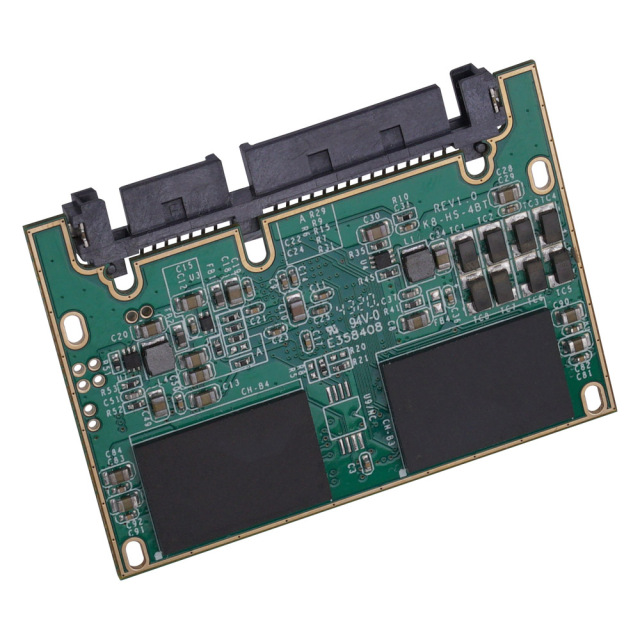

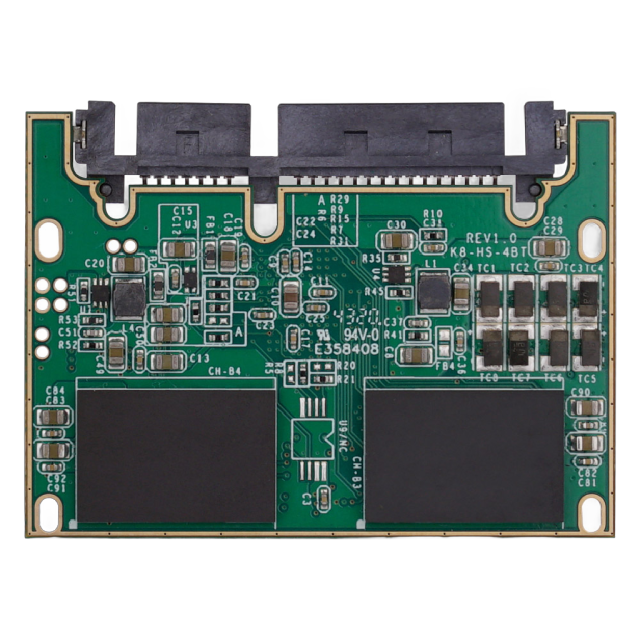

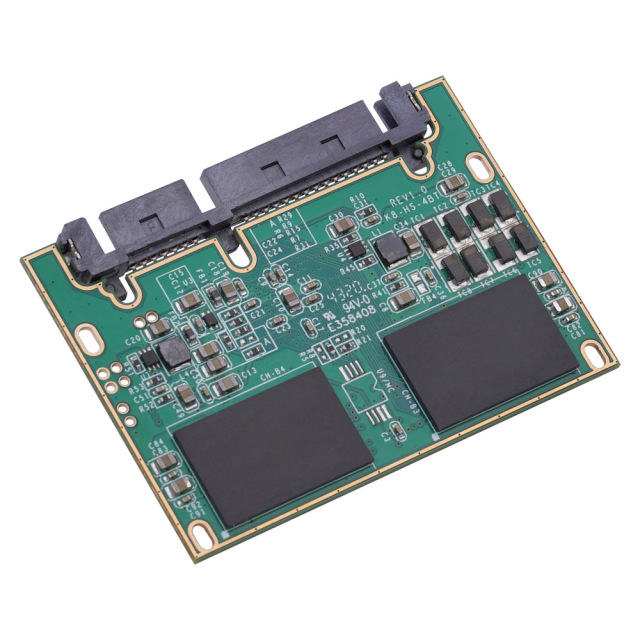

RSHS-XXX is a well-balanced SATA SSD with standard form factor(1.8" SATA half size) and great performance. Designed in SATA 6 Gb/s interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.
RSHS-XXX utilizes 2D NAND and capacity range is 8GB~256GB, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling, flash block management, S.M.A.R.T. and TRIM
Features
Interface：SATA3.0(6Gb/s)
Low-Density Parity-Check (LDPC) Code
Global Wear Leveling
Flash bad-block management
Flash Translation Layer: Page Mapping
Support S.M.A.R.T.
Support TRIM
Specifications
|
Product Model |
RSHS-XXX |
|
Flash Type |
MLC |
|
Capacity |
8GB~256GB |
|
Sequential Read |
Up to 550MB/s |
|
Sequential Write |
Up to 300MB/s |
|
4K Random Read |
21700 IOPS |
|
4K Random Write |
22000 IOPS |
|
Operating Temperature |
-20°C ~ 70°C, -40°C ~ 85°C |
|
Storage Temperature |
-55°C ~ +95°C |
|
Humidity |
5%-95% RH non-condensing |
|
Shock |
1500G/0.5ms |
|
Vibration |
80Hz~2000Hz/20G |
|
Operating Voltage |
DC 5V±5% |
|
Power Consumption（MAX） |
2.06W |
|
Dimensions |
L54.0mm*W39.0mm*H4.5mm ±0.15mm |
|
MTBF |
2 million hours |
